In this post, one possible scheme for flexible construction of QuantLib piecewise yield term structures will be presented. The program and all involved files can be downloaded from my GitHub repository.
Assume we would like to construct piecewise yield term structure for EUR and USD. Assume also, that we have the following market data for EUR and USD currencies in a specific CSV file.
Ticker,Value USD.DEPOSIT.1D,0.02359 USD.DEPOSIT.1W,0.0237475 USD.DEPOSIT.1M,0.02325 USD.DEPOSIT.2M,0.0232475 USD.DEPOSIT.3M,0.0230338 USD.FUTURE.2M,97.92 USD.FUTURE.5M,98.005 USD.FUTURE.8M,98.185 USD.FUTURE.11M,98.27 USD.FUTURE.14M,98.33 USD.SWAP.2Y,0.01879 USD.SWAP.3Y,0.01835 USD.SWAP.5Y,0.01862 USD.SWAP.7Y,0.0194 USD.SWAP.10Y,0.02065 USD.SWAP.15Y,0.02204 USD.SWAP.30Y,0.02306 EUR.DEPOSIT.1D,-0.00366 EUR.DEPOSIT.1W,-0.00399 EUR.DEPOSIT.1M,-0.00393 EUR.DEPOSIT.3M,-0.00363 EUR.DEPOSIT.6M,-0.00342 EUR.FUTURE.5M,100.48 EUR.FUTURE.8M,100.505 EUR.FUTURE.11M,100.505 EUR.FUTURE.14M,100.495 EUR.FUTURE.17M,100.47 EUR.SWAP.1Y,-0.0038 EUR.SWAP.2Y,-0.0039 EUR.SWAP.5Y,-0.0019 EUR.SWAP.7Y,-0.0002 EUR.SWAP.10Y,0.0024 EUR.SWAP.15Y,0.0056 EUR.SWAP.30Y,0.008
In essence, we have key-value pairs in this CSV file, where the key is ticker (instrument, such as deposit, future or swap) and the value is rate (or price for a futures contract). Now, all instruments in that file are following some specific market conventions. All these conventions are then stored in a specific JSON file. The content of this file can be easily understood by using some available JSON editor.
In essence, we are actually storing all required "constant" parameters for all QuantLib instruments we would like to use for constructing piecewise yield curves, into this file. At the moment, there are required conventions available for constructing EUR and USD curves.
Next, we have builder class PiecewiseCurveBuilder for assembling QuantLib piecewise yield term structures, as shown below. In the first stage, we store all conventions and market data into this builder class in its constructor. After this, builder is ready for constructing curves. As client is requesting specific curve by using Build method, the class will then create all bootstrap helpers based on a given market data (for requested currency) and instrument conventions (for instruments in requested currency).
# create piecewise yield term structure class PiecewiseCurveBuilder(object): # in constructor, we store all possible instrument conventions and market data def __init__(self, settlementDate, conventions, marketData): self.helpers = [] # list containing bootstrap helpers self.settlementDate = settlementDate self.conventions = conventions self.market = marketData # for a given currency, first assemble bootstrap helpers, # then construct yield term structure handle def Build(self, currency, enableExtrapolation = True): # clear all existing bootstrap helpers from list self.helpers.clear() # filter out correct market data set for a given currency data = self.market.loc[self.market['Ticker'].str.contains(currency), :] # loop through market data set for i in range(data.shape[0]): # extract ticker and value ticker = data.iloc[i]['Ticker'] value = data.iloc[i]['Value'] # add deposit rate helper # ticker prototype: 'CCY.DEPOSIT.3M' if('DEPOSIT' in ticker): # extract correct instrument convention convention = self.conventions[currency]['DEPOSIT'] rate = value period = ql.Period(ticker.split('.')[2]) # extract parameters from instrument convention fixingDays = convention['FIXINGDAYS'] calendar = Convert.to_calendar(convention['CALENDAR']) businessDayConvention = Convert.to_businessDayConvention(convention['BUSINESSDAYCONVENTION']) endOfMonth = convention['ENDOFMONTH'] dayCounter = Convert.to_dayCounter(convention['DAYCOUNTER']) # create and append deposit helper into helper list self.helpers.append(ql.DepositRateHelper(rate, period, fixingDays, calendar, businessDayConvention, endOfMonth, dayCounter)) # add futures rate helper # ticker prototype: 'CCY.FUTURE.10M' # note: third ticker field ('10M') is defining starting date # for future to be 10 months after defined settlement date if('FUTURE' in ticker): # extract correct instrument convention convention = self.conventions[currency]['FUTURE'] price = value iborStartDate = ql.IMM.nextDate(self.settlementDate + ql.Period(ticker.split('.')[2])) # extract parameters from instrument convention lengthInMonths = convention['LENGTHINMONTHS'] calendar = Convert.to_calendar(convention['CALENDAR']) businessDayConvention = Convert.to_businessDayConvention(convention['BUSINESSDAYCONVENTION']) endOfMonth = convention['ENDOFMONTH'] dayCounter = Convert.to_dayCounter(convention['DAYCOUNTER']) # create and append futures helper into helper list self.helpers.append(ql.FuturesRateHelper(price, iborStartDate, lengthInMonths, calendar, businessDayConvention, endOfMonth, dayCounter)) # add swap rate helper # ticker prototype: 'CCY.SWAP.2Y' if('SWAP' in ticker): # extract correct instrument convention convention = self.conventions[currency]['SWAP'] rate = value periodLength = ql.Period(ticker.split('.')[2]) # extract parameters from instrument convention fixedCalendar = Convert.to_calendar(convention['FIXEDCALENDAR']) fixedFrequency = Convert.to_frequency(convention['FIXEDFREQUENCY']) fixedConvention = Convert.to_businessDayConvention(convention['FIXEDCONVENTION']) fixedDayCount = Convert.to_dayCounter(convention['FIXEDDAYCOUNTER']) floatIndex = Convert.to_iborIndex(convention['FLOATINDEX']) # create and append swap helper into helper list self.helpers.append(ql.SwapRateHelper(rate, periodLength, fixedCalendar, fixedFrequency, fixedConvention, fixedDayCount, floatIndex)) # extract day counter for curve from configurations dayCounter = Convert.to_dayCounter(self.conventions[currency]['CONFIGURATIONS']['DAYCOUNTER']) # construct yield term structure handle yieldTermStructure = ql.PiecewiseLinearZero(self.settlementDate, self.helpers, dayCounter) if(enableExtrapolation == True): yieldTermStructure.enableExtrapolation() return ql.RelinkableYieldTermStructureHandle(yieldTermStructure)
The final component in this scheme is Convert class, which performs conversions from string presentation to specific QuantLib data types. This class is heavily used in builder class, where convention string information is transformed into correct QuantLib data types.
# utility class for different QuantLib type conversions class Convert: # convert date string ('yyyy-mm-dd') to QuantLib Date object def to_date(s): monthDictionary = { '01': ql.January, '02': ql.February, '03': ql.March, '04': ql.April, '05': ql.May, '06': ql.June, '07': ql.July, '08': ql.August, '09': ql.September, '10': ql.October, '11': ql.November, '12': ql.December } s = s.split('-') return ql.Date(int(s[2]), monthDictionary[s[1]], int(s[0])) # convert string to QuantLib businessdayconvention enumerator def to_businessDayConvention(s): if (s.upper() == 'FOLLOWING'): return ql.Following if (s.upper() == 'MODIFIEDFOLLOWING'): return ql.ModifiedFollowing if (s.upper() == 'PRECEDING'): return ql.Preceding if (s.upper() == 'MODIFIEDPRECEDING'): return ql.ModifiedPreceding if (s.upper() == 'UNADJUSTED'): return ql.Unadjusted # convert string to QuantLib calendar object def to_calendar(s): if (s.upper() == 'TARGET'): return ql.TARGET() if (s.upper() == 'UNITEDSTATES'): return ql.UnitedStates() if (s.upper() == 'UNITEDKINGDOM'): return ql.UnitedKingdom() # TODO: add new calendar here # convert string to QuantLib swap type enumerator def to_swapType(s): if (s.upper() == 'PAYER'): return ql.VanillaSwap.Payer if (s.upper() == 'RECEIVER'): return ql.VanillaSwap.Receiver # convert string to QuantLib frequency enumerator def to_frequency(s): if (s.upper() == 'DAILY'): return ql.Daily if (s.upper() == 'WEEKLY'): return ql.Weekly if (s.upper() == 'MONTHLY'): return ql.Monthly if (s.upper() == 'QUARTERLY'): return ql.Quarterly if (s.upper() == 'SEMIANNUAL'): return ql.Semiannual if (s.upper() == 'ANNUAL'): return ql.Annual # convert string to QuantLib date generation rule enumerator def to_dateGenerationRule(s): if (s.upper() == 'BACKWARD'): return ql.DateGeneration.Backward if (s.upper() == 'FORWARD'): return ql.DateGeneration.Forward # TODO: add new date generation rule here # convert string to QuantLib day counter object def to_dayCounter(s): if (s.upper() == 'ACTUAL360'): return ql.Actual360() if (s.upper() == 'ACTUAL365FIXED'): return ql.Actual365Fixed() if (s.upper() == 'ACTUALACTUAL'): return ql.ActualActual() if (s.upper() == 'ACTUAL365NOLEAP'): return ql.Actual365NoLeap() if (s.upper() == 'BUSINESS252'): return ql.Business252() if (s.upper() == 'ONEDAYCOUNTER'): return ql.OneDayCounter() if (s.upper() == 'SIMPLEDAYCOUNTER'): return ql.SimpleDayCounter() if (s.upper() == 'THIRTY360'): return ql.Thirty360() # convert string (ex.'USD.3M') to QuantLib ibor index object def to_iborIndex(s): s = s.split('.') if(s[0].upper() == 'USD'): return ql.USDLibor(ql.Period(s[1])) if(s[0].upper() == 'EUR'): return ql.Euribor(ql.Period(s[1]))
Finally, let us take a look, how easily we can actually construct QuantLib piecewise yield term structures for our two currencies. After this point, these constructed curves can then be used as arguments for pricing engines.
# create instrument conventions and market data rootDirectory = sys.argv[1] # command line argument: '/home/mikejuniperhill/QuantLib/' evaluationDate = Convert.to_date(datetime.today().strftime('%Y-%m-%d')) ql.Settings.instance().evaluationDate = evaluationDate conventions = Configurations(rootDirectory + 'conventions.json') marketData = pd.read_csv(rootDirectory + 'marketdata.csv') # initialize builder, store all conventions and market data builder = PiecewiseCurveBuilder(evaluationDate, conventions, marketData) currencies = sys.argv[2] # command line argument: 'USD,EUR' currencies = currencies.split(',') # construct curves based on instrument conventions, given market data and currencies for currency in currencies: curve = builder.Build(currency) # print discount factors semiannually up to 30 years times = np.linspace(0.0, 30.0, 61) df = [round(curve.discount(t), 4) for t in times] print('discount factors for', currency) print(df)
Address to root directory (containing market data and instrument conventions files) and requested currencies are given as command line arguments. Conventions object and market data (pandas data frame) are being created and fed to curve builder object in its constructor. Finally, curves are being requested for each currency.
It can be seen, that we can actually create piecewise yield term structures for any currency (as long as market data and conventions are available) with a very few lines of code by using this kind of construction scheme. In essence, all the complexity involved is still there, but we have effectively moved all "janitor work" into specific classes (builder, conversions) and files (conventions, market data).
Configuration for a new currency should be straightforward: add instruments into market data file (ticker-value-pairs). Then, add new section for this new currency to conventions file (including configuration sub-sections for all instruments in this new currency). Also, some minor additions might be needed in conversion class.

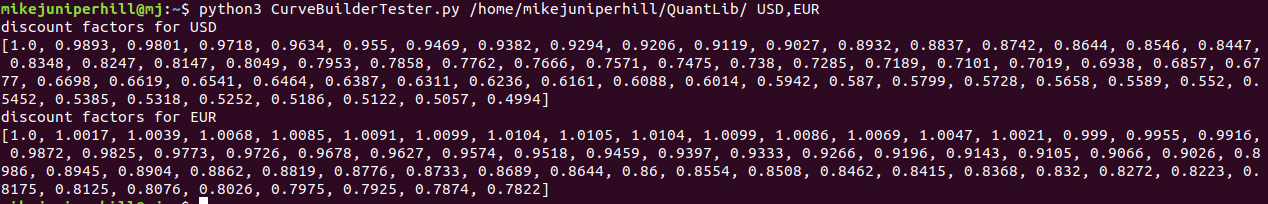

Program execution is shown below.
Thanks for reading my blog.
-Mike
